Nožnicové vozíky
Nožnicové vozíky
Hlavné detaily
Nožnicové vozíky Hyster
- Nastaviteľná pracovná plošina so zdvihom závažia až do výšky 800 mm, vhodná pre dielne.
- Veľká spoľahlivosť a praktickosť vďaka inovatívnej čelnej ochrane a zníženej hmotnosti nožnicového vozíka
- Funkcia núdzového zastavenia, ktorá tiež odpojí batériu.
- Batéria a externý nabíjač v cene nožnicového vozíka
- Dôkladne otestované najmodernejšie čerpadlo
- Dve rýchlosti zdvihu: vysoká rýchlosť bez bez zaťaženia a normálna rýchlosť s naloženými vidlicami
- Vysokokvalitný ľahký oceľový rám
- 24 mesiacov záruka

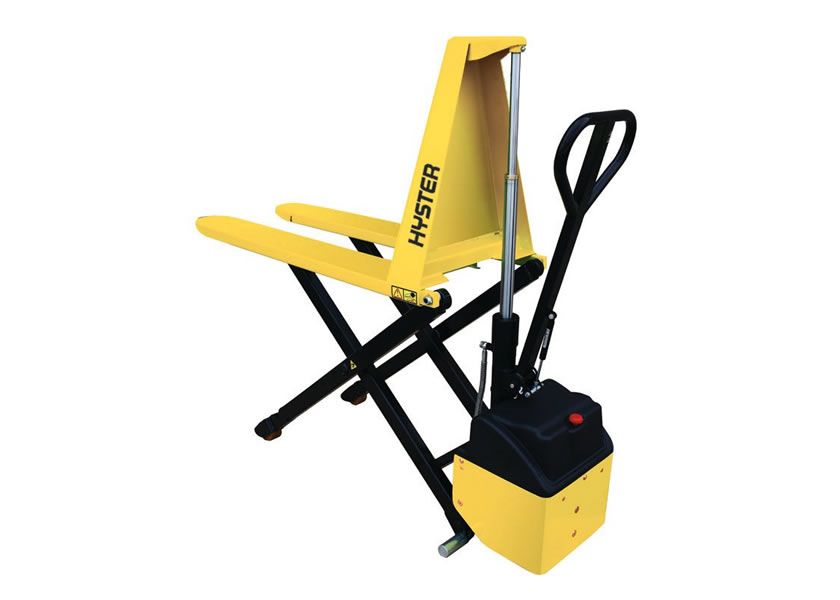

Elektrické
| Manufacturer | Hyster | |
|---|---|---|
| Model designation | PLPM 1.0 HXE | |
| Power: battery, diesel, LPG, electric mains | Manual | |
| Operation: manual, pedestrian, stand, seat, order picker | Pedestrian | |
| Load capacity | Q (kg) | 1000 |
| Load centre distance | c (mm) | 600 |
| Load distance, centre of drive axle to fork | x (mm) | 993 |
| Wheel base | y (mm) | 1231 |
| Service weight with battery (see line 6.5) | (kg) | 141 |
| Axle load laden, front / rear | (kg) | 381 / 760 |
| Axle load unladen, front / rear | (kg) | 113 /28 |
| Tyres: rubber, polyurethane, vulkolan front / rear | Rubber | |
| Tyre size, front | 0 80 x 50 | |
| Tyre size, rear | 0 200 x 45 | |
| Wheels, number front / rear | 2/2 | |
| Tread, front | b 10 (mm) | 151 |
| Tread, rear | b„ (mm) | 447 |
| Lift height | hs (mm) | 715 |
| Height of tiller arm in working position min/max | h 14 (mm) | 1300 |
| Height, lowered | h (mm) | 85 |
| Overall length | I, (mm) | 1685 |
| Length to face of forks | I 2 (mm) | 540 |
| Overall width | b 1 (mm) | 540 |
| Fork dimensions | s/e/l (mm) | 48 160 / 1150 |
| Distance between fork arms | bs (mm) | 540 |
| Ground clearance, centre of wheelbase | m 2 (mm) | 21 |
| Aisle width with pallets 1000 x 1200 mm wide | Ast (mm) | 1652 |
| Aisle width pallets 800 x 1200 mm wide | Ast (mm) | 1852 |
| Turning radius | Wa (mm) | 1445 |
| Lift speed, laden/unladen | (m/s) | 0.08 / 0.13 |
| Lowering speed, laden/unladen | (m/s) | 0.13 / 0.06 |
| Lift motor power | (kW) | 1.6 |
| Battery voltage, nominal capacity C5 | (V/Ah) | 12/60 |
| Battery weight | (kg) | 16 |

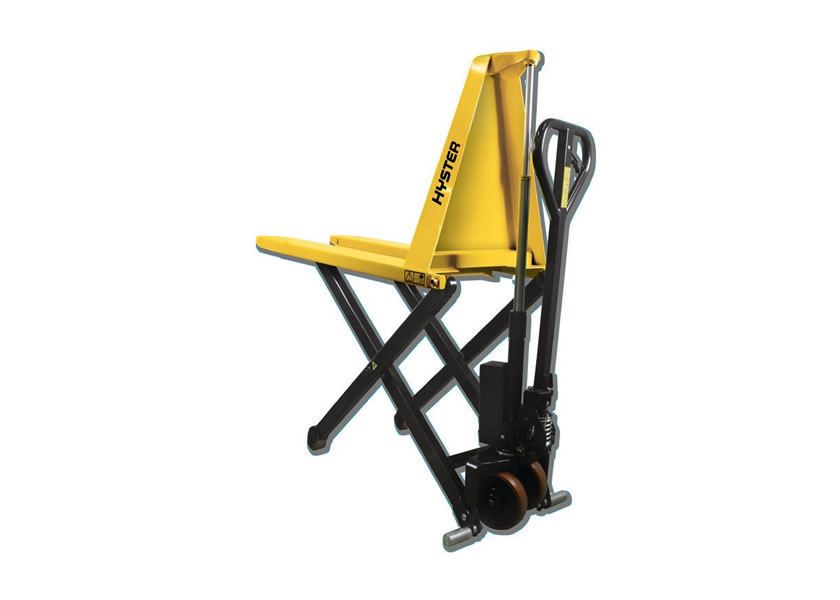

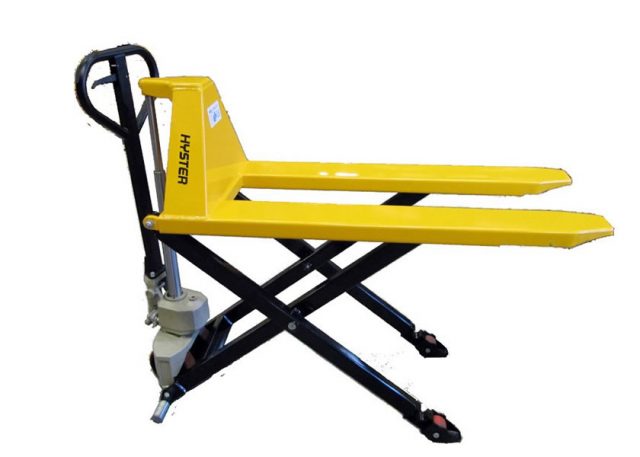

Manuálne
| Characteristics | ||
|---|---|---|
| Manufacturer | Hyster | |
| Model designation | HDPM 1.0 | |
| Power: battery, diesel, LPG, electric mains | Manual | |
| Operation: manual, pedestrian, stand, seat, order picker | Manual / Tiller | |
| Load capacity | Q (kg) | 1000 |
| Load centre | c (mm) | 600 |
| Load distance | x (mm) | 993 |
| Wheel base | y (mm) | 1236 |
| Unladen weight | (kg) | 104 |
| Wheels & Tyres | ||
| Tyres: rubber, polyurethane, vulkolan front / rear | PU | |
| Tyre size, front | 0 200 x 45 | |
| Tyre size, rear | 0 80 x 50 | |
| Wheels, number front / rear | 2 / 2 | |
| Track width, front | (mm) | 150 |
| Track width, rear | (mm) | 447 |
| Dimensions | ||
| Lift height | h 3 (mm) | 715 |
| Height of tiller arm in working position | h M (mm) | 1250 |
| Height, lowered | h13 (mm) | 85 |
| Overall length | I 1 (mm) | 1526 |
| Length to face of forks | I 2 (mm) | 376 |
| Overall width | (mm) | 540 |
| Fork dimensions | s/e/l (mm) | 48 160 1150 |
| Outside fork width | b 5 (mm) | 540 |
| Ground clearance, centre of wheelbase | m 2 (mm) | 21 |
| Turning radius | Wa (mm) | 1372 |
